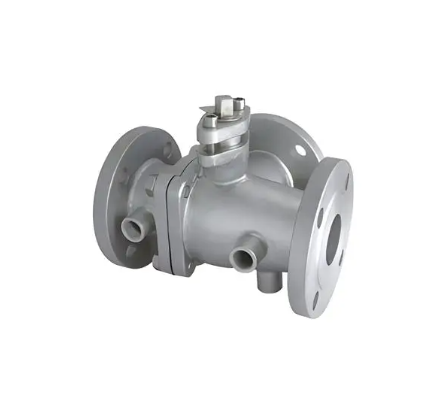

良工三通保溫球閥概述：
BQ45F三通(tong)(tong)(tong)保(bao)溫球(qiu)閥有(you)兩閥座(zuo)密(mi)封L型(xing)結(jie)構(gou)和(he)四(si)閥座(zuo)密(mi)封T型(xing)結(jie)構(gou)兩種，用戶可根據工況(kuang)實(shi)際情(qing)況(kuang)選擇(ze)類型(xing)，該三通(tong)(tong)(tong)保(bao)溫球(qiu)閥具有(you)造(zao)型(xing)美觀，結(jie)構(gou)緊湊(cou)合理(li)，它(ta)不僅可實(shi)現介質(zhi)流向(xiang)的切換，也可使三個通(tong)(tong)(tong)道相互連(lian)通(tong)(tong)(tong)，同時(shi)也可關(guan)閉任一通(tong)(tong)(tong)道，使另外(wai)兩個通(tong)(tong)(tong)道連(lian)通(tong)(tong)(tong)，靈活控制管路中介質(zhi)的合流與分(fen)流。
良工三通保溫球閥性能參數：
公稱壓力 | 試驗壓力 | ||
殼體 | 高壓液密封 | 低壓液密封 | |
1.6 | 2.4 | 1.76 | 0.6Mpa |
2.5 | 3.75 | 2.75 | |
4.0 | 6.0 | 4.4 | |
CLASS150 | 3.0 | 2.2 | |
適用工況 | 適用介質 | 水、油品(pin)、氣等(deng)非腐蝕(shi)介質(zhi)和酸堿腐蝕(shi)介質(zhi) | |
適用溫度 | -28～350℃ | ||
應用規范 | 連接法蘭 | JB79-59 GB9113、 | |
檢驗試驗 | JB/T 9092-99 、API598 | ||
良工三通保溫球閥L型連接外形尺寸：
型號 | 公稱通徑 | 尺寸(mm) | |||||||||
L | L2 | D | D1 | D2 | b | f | Z-d | H | W | ||
BQ44F-16C | 15 | 150 | 72 | 95 | 65 | 45 | 14 | 2 | 4-14 | 95 | 130 |
20 | 160 | 80 | 105 | 75 | 55 | 14 | 2 | 4-14 | 110 | 130 | |
25 | 180 | 90 | 115 | 85 | 65 | 14 | 2 | 4-18 | 120 | 140 | |
32 | 200 | 100 | 135 | 100 | 78 | 16 | 2 | 4-18 | 144 | 180 | |
40 | 220 | 110 | 145 | 110 | 85 | 16 | 3 | 4-18 | 152 | 220 | |
50 | 240 | 120 | 160 | 125 | 100 | 16 | 3 | 4-23 | 182 | 220 | |
65 | 260 | 130 | 180 | 145 | 120 | 16 | 3 | 4-18 | 193 | 240 | |
80 | 280 | 140 | 195 | 160 | 135 | 20 | 3 | 8-18 | 217 | 270 | |
100 | 320 | 160 | 215 | 180 | 155 | 20 | 3 | 8-18 | 245 | 350 | |
125 | 380 | 190 | 245 | 210 | 185 | 22 | 3 | 8-18 | 282 | 500 | |
150 | 440 | 220 | 280 | 240 | 210 | 24 | 3 | 8-23 | 319 | 600 | |
200 | 550 | 260 | 335 | 295 | 265 | 26 | 3 | 12-23 | 380 | 1000 | |
250 | 670 | 310 | 405 | 355 | 320 | 30 | 3 | 12-25 | 460 | 1400 | |
300 | 720 | 370 | 460 | 410 | 375 | 30 | 3 | 12-25 | 520 | 1800 | |
